EN 1092-1 Flange
Yam khoom: EN 1092-1 flange
Specifications: Hom 01, 05, 11, 12, 21, 34
Khoom siv: Gr1, Gr2, Gr7, Gr12
Txuj: ASME B381, HG/T 20592-2009
Kev ntsuas siab: N6 PN10 PN16 PN25 PN40 PN63 PN100 PN160
Khoom Taw qhia
Hais txog yam khoom no:

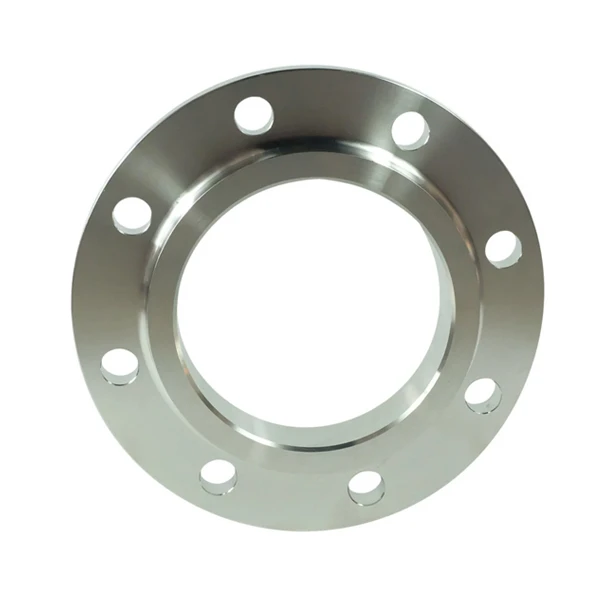

EN 1092-1 flange Hom 01 tseem hu ua phaj vuam flange, steel nplhaib flange, lossis S / O phaj flange. Nws yog ib hom xoob flange uas zoo ib yam li plam-on flange tab sis tsis muaj hub. Hom 01 phaj flange tuaj yeem plam mus rau hauv cov yeeb nkab ua ntej vuam. Ob lub fillet welds, ib sab hauv thiab ib qho sab nraud, yuav tsum tau siv los koom nrog cov yeeb nkab thiab flange. Lawv tuaj yeem muab kho nrog lub ntsej muag tiaj tus (FF) lossis tsa ntsej muag (RF) nyob ntawm tus neeg siv khoom xav tau. Raws li EN 1092-1, Hom 01 phaj flanges muaj nyob rau hauv 8 qhov kev ntsuas siab: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN40, PN 63, thiab PN 100. Qhov ntev thiab qhov loj ntawm qhov sib xws flanges tau teev nyob rau hauv cov lus hauv qab no. Tag nrho qhov ntev yog nyob rau hauv mm thiab qhov hnyav / hnyav yog kg.
EN 1092-1 Hom 01 phaj flanges tuaj yeem tsim los ntawm forgings lossis cov khoom tiaj tus (phaj). Lawv tuaj yeem raug machined los ntawm dov los yog forged tuav thiab forged seem steel. Rau qhov loj me, lawv tuaj yeem khoov thiab hluav taws xob welded los ntawm cov tuav, ntu steel, lossis strips. Lub flange tej zaum yuav tsim los ntawm ib tug dav spectrum ntawm cov ntaub ntawv qib npog carbon steel, tsis tshua muaj hlau alloy, stainless hlau, thiab lwm yam high alloy steels.
Dimensions & Nyhav rau EN 1092-1 flange Hom 01 PN2.5
Technical Drawing & Kev Taw Qhia General
Nco tseg
Daim duab ntawm EN 1092-1 flange Hom 01 flange nrog tsa ntsej muag. D: sab nraud txoj kab uas hla; K: txoj kab uas hla ntawm bolt lub voj voog; R: txoj kab uas hla ntawm tsa lub ntsej muag; n: tus naj npawb ntawm bolts; d: txoj kab uas hla ntawm lub qhov ntsia hlau; Qhov hnyav: hnyav lossis hnyav ntawm Hom 01 phaj flange; C: thickness ntawm flange; f: qhov siab ntawm lub ntsej muag.
Specifications
DN15 ~ DN600: Φ21.3 ~ Φ1219.2 hli
|
NPS |
DN |
OD (mm) |
|
1/2" |
15 |
21.3 |
|
3/4" |
20 |
26.7 |
|
1" |
25 |
33.4 |
|
1-1/4" |
32 |
42.2 |
|
1-1/2" |
40 |
48.3 |
|
2" |
50 |
60.3 |
|
2-1/2" |
65 |
73 |
|
3" |
80 |
88.9 |
|
3-1/2" |
90 |
101.6 |
|
4" |
100 |
114.3 |
|
5" |
125 |
141.3 |
|
6" |
150 |
168.3 |
|
8" |
200 |
219.1 |
|
10" |
250 |
273 |
|
12" |
300 |
323.8 |
|
14" |
350 |
355.6 |
|
16" |
400 |
406.4 |
|
18" |
450 |
457.2 |
|
20" |
500 |
508 |
|
22" |
550 |
558.8 |
|
24" |
600 |
609.6 |
|
26" |
650 |
660.4 |
|
28" |
700 |
711.2 |
|
30" |
750 |
762 |
|
32" |
800 |
812.8 |
|
34" |
850 |
863.6 |
|
36" |
900 |
914.4 |
|
38" |
950 |
965.2 |
|
40" |
1000 |
1016 |
|
42" |
1050 |
1066.8 |
|
44" |
1100 |
1117.6 |
|
46" |
1150 |
1168.4 |
|
48" |
1200 |
1219.2 |
